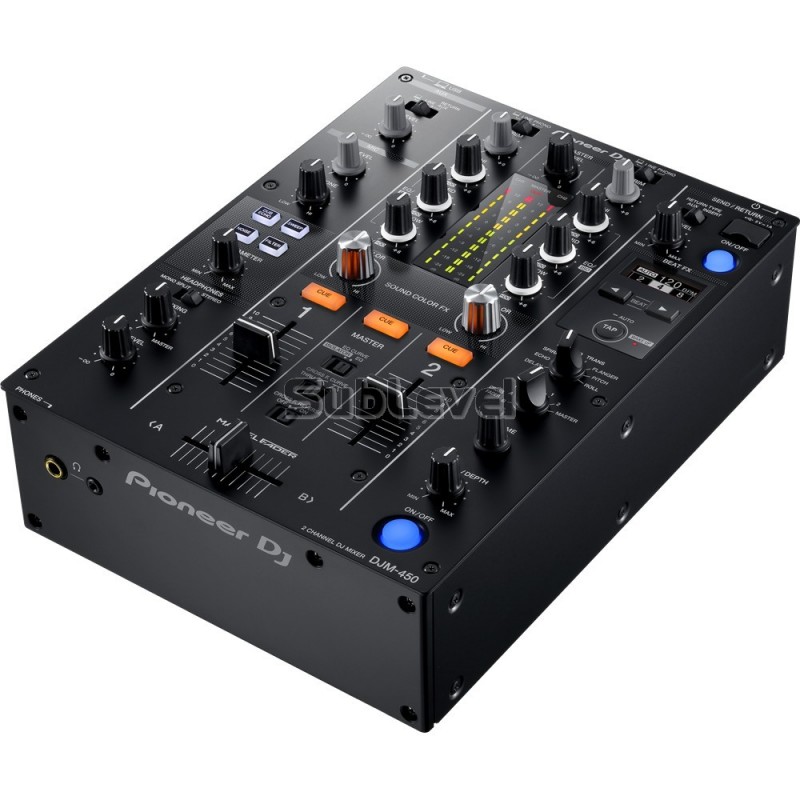

Pioneer DJ DJM-450

KEY FEATURES OF THE DJM-450

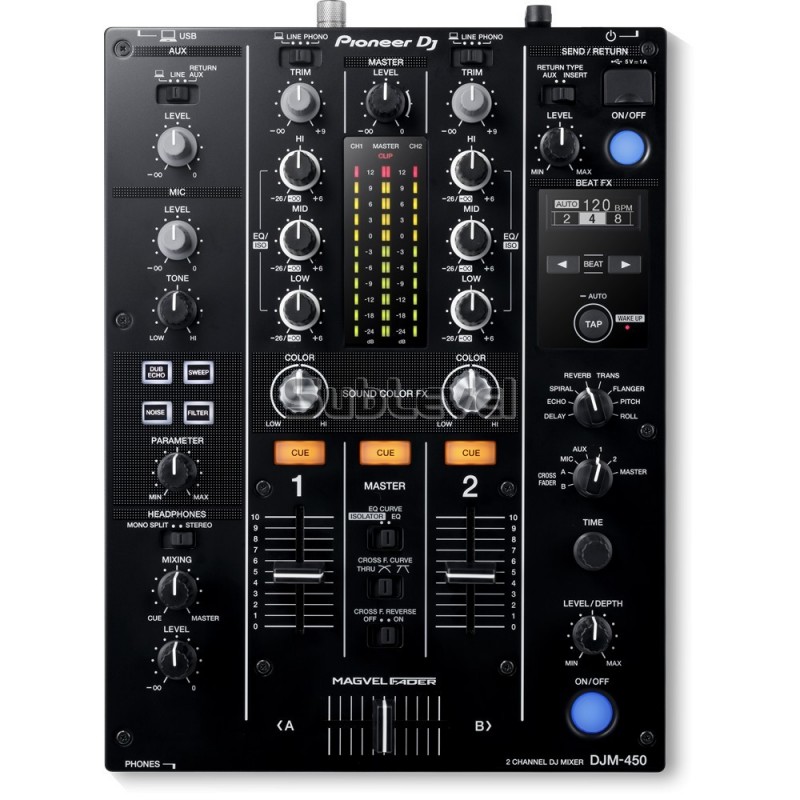

Professional layout
Mixing on the DJM-450 feels instinctive thanks to the layout design, which inherits traits from the DJM-900NXS2 professional mixer.
Smooth EQs, channel faders and Magvel crossfader
Precise, smooth mixes are a breeze using the EQs and channel faders, which feature curves equivalent to those on the DJM-900NXS2. The EQ curves give precision across the highs, mids and lows, and the isolator feature means you can totally eliminate each EQ band when you turn the knob all the way to the left. The channel fader curves give accuracy over long, smooth mixes, and the Magvel crossfader – also taken from the DJM-900NXS2 – is a dream to scratch on. Accurate and smooth, it is durable for more than 10 million movements.
Professional FX with detailed control
Add professional FX to your mixes using the filter suite inherited from the DJM-900NXS2, including Sound Colour FX, Beat FX, and send/return.
Sound Colour FX – Just turn the knob to apply Dub Echo, Sweep, Noise, and Filter
Beat FX – Add Delay, Echo, Spiral, Reverb, Trans, Flanger, Pitch and Roll in sync with the BPM
Send/return – Connect apps in mobile device via USB and use them alongside the DJM-450’s internal FX. Choose your preferred return type from Aux or Insert to create the sound you want.
Bundled licences for rekordbox dj and rekordbox dvs
The DJM-450 comes with free licence keys for our professional dj performance applications rekordbox dj and rekordbox dvs so you can play digital tracks from your PC/Mac using turntables and control vinyl (available separately). The mixer’s built-in sound card means you can connect to your computer using a single USB cable.

How to use rekordbox dj and rekordbox dvs:
Buy the RB-VS1-K Control Vinyl from a Pioneer DJ authorised dealer or directly from our website (limited countries only). Visit rekordbox.com to download the latest version of rekordbox for free and enter your licence keys for rekordbox dj and rekordbox dvs. Find out more.
High-quality sound
Whether you’re playing from digital or analogue sound sources, a warm, high-quality sound is created by the 64-bit digital signal processor using dithering technology.
Other features

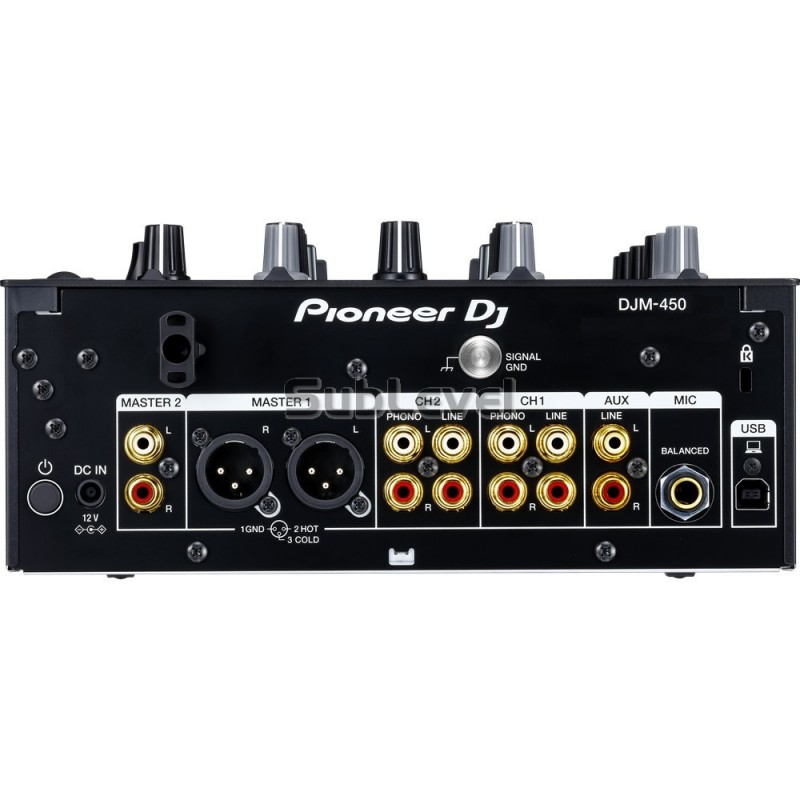

XLR terminal – high-quality audio output
Two headphone outputs – ¼-inch stereo jack and 3.5 mm mini jack
Signal GND terminal – easily attach ground wires from analogue turntables
Gold-plated RCAs – premium sound quality on all connections
Independent Mic section – Use a microphone and the Aux input at the same time
DJM-450 SPECIFICATIONS
Channels Audio 2 channels, MIC 1 channel, AUX 1 channel
Inputs LINE x 3 (RCA), PHONO x 2 (RCA), MIC x 1 (1/4" TRS × 1)
Outputs MASTER OUT x 2 (XLR x 1, RCA x 1)
HEADPHONE MONITOR OUT x 2 (1/4” STEREO PHONE JACK, 3.5mm STEREO MINI JACK)
Other Inputs/Outputs USB (B) x 1, USB (A) x 1
Sampling rate 48 kHz
D/A Converter 24-bit
A/D Converter 24-bit
Frequency Range 20 Hz~20 kHz (LINE)
Distortion 0.005 % (LINE-MASTER1)
S/N Ratio 94 dB (LINE)
Power Consumption DC12V 1.7A
Dimensions 230 mm (W) x 108 mm (H) x 320 mm (D)
Weight 3.2 kgfrom a Pioneer DJ authorised dealer or directly from our website (limited countries only). Visit rekordbox.com to download the latest version of rekordbox for free and enter your licence keys for rekordbox dj and rekordbox dvs. Find out more.
