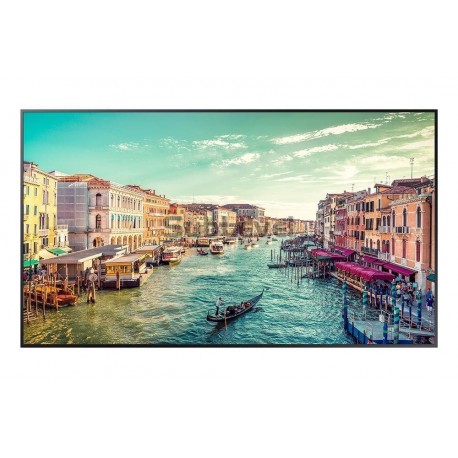

Samsung QM55

Iegāde

Display any content in ultra-high definition with incredibly rich color on slim, efficient signage.

Papildus informācija

1 400,00 €

Papildus informācija

Panel

  • Diagonal Size55"
  • TypeEdge LED BLU
  • Resolution3840*2160 (4K UHD)
  • Pixel Pitch(mm)0.105 x 0.315
  • Active Display Area(mm)1209.6(H) x 680.4(V)
  • Brightness(Typ.)500 nit
  • Contrast Ratio4000:1
  • Viewing Angle(H/V)178/178
  • Response Time(G-to-G)8ms(Typ.)
  • Display Colors16.7M(True Display) 1.07B(Ditherd 10bit)
  • Color Gamut92% (DCI-P3, CIE 1976)
  • Operation Hour24/7
  • Haze25%

Display

  • Dynamic C/RMEGA
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency594MHz

Sound

  • Speaker TypeBuilt in Speaker(10W + 10W)

Connectivity

Input
  • RGBDVI-D, Display Port 1.2 (1)
  • VideoHDMI 2.0 (2)
  • HDCPHDCP2.2
  • AudioStereo mini Jack, DVI, HDMI
  • USBUSB 2.0 x 2
Output
  • RGBHDMI 2.0 (Loop-out)
  • AudioStereo mini Jack
  • External ControlRS232C(in/out) thru stereo jack, RJ45
  • External SensorIR

Power

  • TypeInternal
  • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]143
  • Typical[W/h]108
  • Rating[W/h]130
  • BTU(Max)487.6
  • Sleep mode0.5

Mechanical Specification

Dimension (mm)
  • Set1235.1 x 707.9 x 46.3
  • Package1402 x 858 x 163
Weight (kg)
  • Set18.1
  • Package23.6
  • VESA Mount (mm)200 X 200
  • Stand TypeFoot Stand (Optional)
  • Bezel Width (mm)9.2mm(U/L/R), 11.2mm(B)

Operation

  • Operating Temperature0  ℃  ~   40   ℃
  • Humidity10  %  ~   80   %

Feature

  • Key FeaturesUHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
  • Special FeaturesH/W: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
  • ProcessorCoretex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed1.7GHz
  • Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit
  • GraphicsGraphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
  • Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
  • IO PortsUSB 2.0
  • Operating SystemTizen 4.0 (VDLinux)

Certification

  • Safety60950-1
  • EMCClass B
  • Security802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP

Accessory

  • IncludedQuick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
  • StandSTN-L4355F
  • MountWMN4070SE
  • SpecialtyCML400XK
